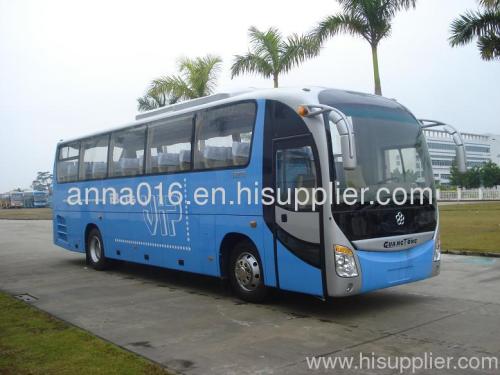

Tourist Bus and Luxury Coach from China manufacturer - ZhuHai Granton Bus and Coach Co.,Ltd

Payment Terms:	T/T,L/C,
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: GTZ6109E3B3

Production Capacity: 3000set per year

Delivery Date: 60days

Type: Others

Brand Name: Granton

Means of Transport: Ocean,Land,

Packing: Bulk

Made In: Others

Fuel: Diesel

Color: Blue or Red or Others

Length×Width×Height 10490X2480X3460 mm (with A/C)
Max. speed 120 km/h
Seats 45+1+1 pcs (24~47pcs)

GTZ6109E3B3
Main Parameter
Length×Width×Height	10490X2480X3460 mm (with A/C)
Wheel base	5500 mm
F. / R. overhang	2070/2920 mm
Max. speed	120 km/h
Seats	45+1+1 pcs (24~47pcs)
Chassis		Option
Engine Model	YC6J245-30
Max. power	245ps/2500rpm
Max. torque	800N.m/1200-1700rpm
Fuel type	Diesel oil
Transmission	QJ805, ZF technology, 5 forward gears, flexible shaft control.
Clutch	φ420mm, spiral spring.
F. / R. axle	EQ145, 5000kg / EQ145, 9500kg
Steering system	Left rudder, power steering.	Right rudder
Brake system	Drum service brake, storage spring parking brake. Automatic brake adjuster, ABS.
Suspension system	Leaf spring, front 9 / rear 9	Air suspention, F. 2/ R.4
Tire	10R22.5
Fuel tank capacity	330L
Body		Option
Side covering skin	Aluminum alloy plate
Side window	Fully sealed except the driver's window is sliding	Double course glass
Air conditioner	26000kcal/h	Heating system
Door	Single pneumatic outward swing door	Middle door, Emergency door
Interior decoration	Luxury soft inner decoration, luggage rack.
Passenger seats	45pcs, 2+2 seat display, width 420mm, high backrest and adjustable seat.	3+2 seat display, width 380mm.
Audio/Video system	Hard disc player or DVD player & LCD
Others	Defrosting device, Folding curtain, Electronic horn & air horn,Safty harmers,Fire extinguisher, Auto fire extinguisher in engine compartment Inner rear view mirror,Quartz clock,	Water fountain, Reverse monitor
