Granton 11.5m GTZ6117HESG Hybrid Electric City Bus Supplier and Factory

Payment Terms:	T/T,L/C,
Place of Origin:	Guangdong, China (Mainland)


Add to Basket	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GTZ6117HESG

Production Capacity: 3000units per year

Delivery Date: 60days

Condition: New

Drive Wheel: Others

Engine Capacity: 3L

Color: Yellow Or Others

Means of Transport: Ocean,Land,

Packing: Bulk

Horsepower: Others

Capacity (Load): 1-10T

Brand Name: Granton

Size: 10470X2500X3140 mm (with A/...

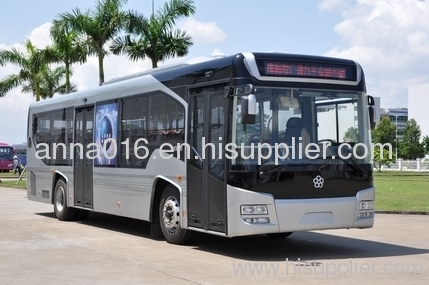

Granton brand, GTZ6117HESG is a 11.5meters Hybrid Electric City Bus with value and good quality. We are the profession city bus manufacturer in China.

Length×Width×Height 11480X2500X3140 mm (with A/C)
Wheel base 6200 mm
F. / R. overhang 2580/2700 mm
Max. speed 85 km/h
Seats 34+1(86/24-42) pcs
Chassis Option
Engine Model Weichai WP4.165
Max. power 165ps/2300rpm
Max. torque 600N.m/1200-1600rpm
Fuel type Diesel oil
Driving motor KAM-280HF, 220V, rated power 75kw, peak power 128kw, max. torquer1800N.m.
Motor controller KAM90C, vector control.
Energy storage device LiFePO4 battery group 282V 40Ah & Super capacitor 384V 20F.
Transmission F6S950G, ZF technology, 6 forward gears, flexible shaft control.
Clutch φ380mm, single dry plate, diaphragm spring.
F. / R. axle 30NS22E-00005 / 24NS74A-00005
Steering system Left rudder, power steering Right rudder
Brake system Drum service brake, storage spring parking brake. Automatic brake adjuster. ABS, Retarder.
Suspension system Leaf spring, front 10 and rear 10
Tire 11R22.5
Fuel tank capacity 200L
Others Centralized lubrication system
Body Option
Side covering skin Imported electrolytic plate
Side window Fully sealed except the driver's window is sliding Double course glass
Air conditioner 30000kcal/h Heating system
Passenger Door Pneumatic in-ward swing door, front double, rear double.
Interior decoration Luxury soft inner decoration, handrail. Hand ring
Passenger seats 34pcs plasitc city bus seats. 24~41pcs
Audio/Video system MP3 player Hard disc player & LCD, or DVD player & LCD
Others Route light-board, Reverse monitor. Electronic display board, Coin box, Stop teller.
